How Does a Hydrogen Water Bottle Work?

August 31, 2026

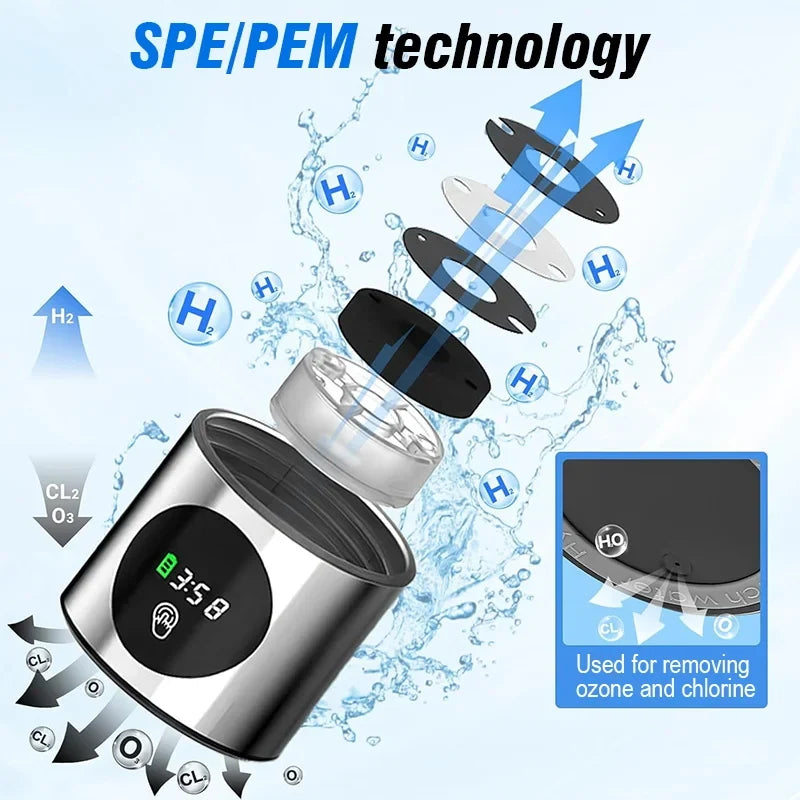

Cutaway of the SPE and PEM electrolysis cell inside a hydrogen water bottle base

A hydrogen water bottle runs one chemical reaction, in a controlled way, for about five minutes. This article explains that reaction — first in plain language, then in a little more detail for anyone who wants it.

The simple version

Water is H₂O: two hydrogen atoms bonded to one oxygen atom. Pass an electric current through water and those bonds break, releasing hydrogen gas at one electrode and oxygen gas at the other. That process is called electrolysis and it has been understood since the early 1800s.

A hydrogen water bottle does this deliberately, then makes sure the hydrogen ends up dissolved in the water you are going to drink while everything else is vented away.

The slightly longer version

Inside the base sit two electrodes with a thin membrane between them.

At the cathode (negative electrode), water molecules gain electrons and hydrogen gas is produced. This is the gas you want, and it is released directly into the water in the bottle.

At the anode (positive electrode), water loses electrons and oxygen is produced. Depending on what else is dissolved in the water, small amounts of ozone and — where chloride is present — chlorine compounds can form here too. None of that is desirable in a drink.

The membrane between them is what makes the device usable. It conducts hydrogen ions from one side to the other but does not let the gases mix. So the hydrogen side stays hydrogen, and the oxygen side, with its ozone and chlorine, is channelled out of a separate vent in the base rather than into your water.

This is the single biggest difference between a well-designed hydrogen water bottle and a cheap one. Without effective separation, you are drinking everything the reaction produced.

Why SPE and PEM appear on every listing

They describe the same membrane from two angles. PEM — proton-exchange membrane — describes what it does: it exchanges protons, which are hydrogen ions. SPE — solid polymer electrolyte — describes what it is: a solid material that also acts as the electrolyte, meaning the bottle needs no added salts or chemicals to conduct current.

That second point matters practically. It is why you can put plain drinking water in the bottle and nothing else. We go deeper in our guide to PEM electrolysis.

Why the water turns cloudy

During a cycle the water looks milky. This is a suspension of extremely fine hydrogen bubbles — far smaller than the visible ones rising up the sides. It clears within a minute or two as the larger bubbles escape and the rest goes into solution. Cloudiness is a sign the bottle is working, not a sign of contamination.

What limits how much hydrogen dissolves

Four things, mostly outside the manufacturer's control:

Temperature. Gases dissolve better in cold water. A cycle on cold water reaches a higher concentration than the same cycle on warm water.
Cycle length and power. More running time means more hydrogen produced, up to the point where the water is saturated.
Membrane condition. Mineral scale reduces the active surface area. Output drops gradually over months if the bottle is never descaled.
Headspace and agitation. Hydrogen leaves solution at the surface. A bottle left open, or shaken, loses it faster.

This is also why published PPB figures are hard to compare across brands — the measurement conditions are rarely stated.

Why you should drink it fresh

Hydrogen is the smallest molecule there is. It diffuses through plastics and escapes from an open container quickly. Within an hour or two of the cycle finishing, a meaningful proportion has gone. This is not a defect in the bottle; it is a property of the gas, and it is the reason portable generation exists at all. If hydrogen stayed put, you could simply buy it bottled.
