Every hydrogen water bottle listing says SPE/PEM. Very few explain what it means. It is worth understanding, because it is the difference between a device that gives you hydrogen-rich water and one that gives you water full of everything electrolysis produces.
Two acronyms, one component
PEM — proton-exchange membrane. A thin polymer sheet that allows protons (hydrogen ions) to pass through it while blocking gas molecules and electrons.
SPE — solid polymer electrolyte. The same sheet, described by its other function: it acts as the electrolyte, so the system does not need a liquid electrolyte or added salts to conduct current.
They are printed together because they describe one piece of hardware doing two jobs at once. The technology is not novel to water bottles — the same principle runs industrial hydrogen production and fuel cells.
Why the separation matters so much
Electrolysis does not only produce hydrogen. At the anode you get oxygen, and depending on what is dissolved in the water, potentially ozone and chlorine compounds too.
You want the hydrogen. You do not want the rest in your drink.

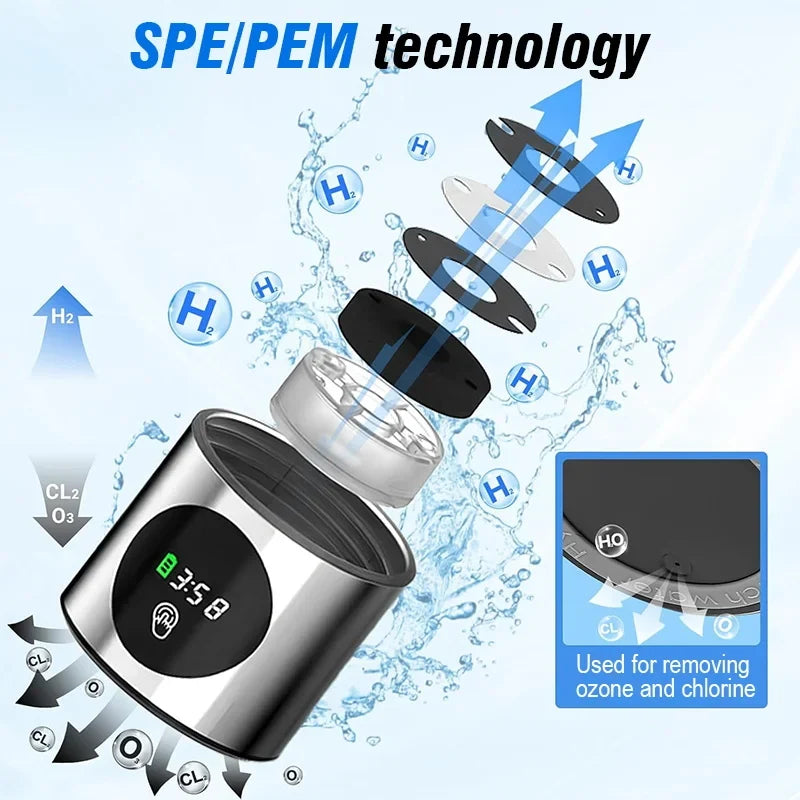

The membrane sits between the two electrodes so the reactions happen in separate compartments. Hydrogen is released into the bottle. The anode products are channelled out through a vent in the base. This is why you will see "dual chamber" alongside SPE/PEM in product descriptions — it is describing the same architecture.
A device without effective separation puts everything into the same water. That is the single most important thing the membrane buys you.
Why you can use plain water
Because the membrane is the electrolyte, no salts need to be added. This is a genuine practical advantage: you fill the bottle with ordinary drinking water and nothing else. Older electrolysis designs needed a conductive additive, which meant either dosing something in or accepting whatever minerals happened to be in your tap water.
It is also why reverse-osmosis water works fine in a PEM bottle despite being nearly free of dissolved solids.
What makes one cell better than another
Externally identical bottles can differ significantly inside. Things that matter:
- Membrane quality and thickness. Thinner conducts better; too thin fails sooner. This is where the well-known membrane materials earn their price.
- Electrode coating. Platinum-group coatings resist corrosion and keep efficiency up over time. Cheap coatings degrade and can shed material.
- How well the vent actually works. A dual-chamber design that vents poorly is not doing its main job.
- Contact pressure. The membrane and electrodes need to be held evenly together. Poor assembly creates dead spots where nothing happens.
None of this is visible from a product photograph, which is a genuine problem for buyers in this category. Our buying guide covers what you can reasonably assess.
How PEM cells age
Two mechanisms, both slow:
- Scaling. Minerals deposit on the membrane surface and reduce the active area. Reversible — this is what descaling addresses.
- Chemical degradation. The polymer itself breaks down slowly with use. Not reversible, but on the duty cycle of a personal bottle it is measured in years, not months.
Scaling accounts for nearly all output loss people actually experience.
The short answer
PEM electrolysis is a well-established method of splitting water that keeps the resulting gases separate, needs no chemical additives, and works at room temperature on ordinary drinking water. In a hydrogen water bottle, it is the reason you can drink what comes out.
